This compact 24V Power Supply is designed for low voltage LED lighting applications, including short runs of 24V LED strip lights, cabinet lighting, display lighting and compatible low voltage LED bulbs.
With a 12W rated output and constant voltage design, it is ideal for small 24V LED circuits where a reliable, safe and efficient LED driver is required. The power supply provides up to 500mA output current at 24V DC and is suitable for LED loads up to 12W.
For best performance and longer service life, it is good practice to choose a power supply with some spare capacity. For example, when powering a 6W to 7.2W LED strip, this 12W driver gives useful headroom without overloading the unit.

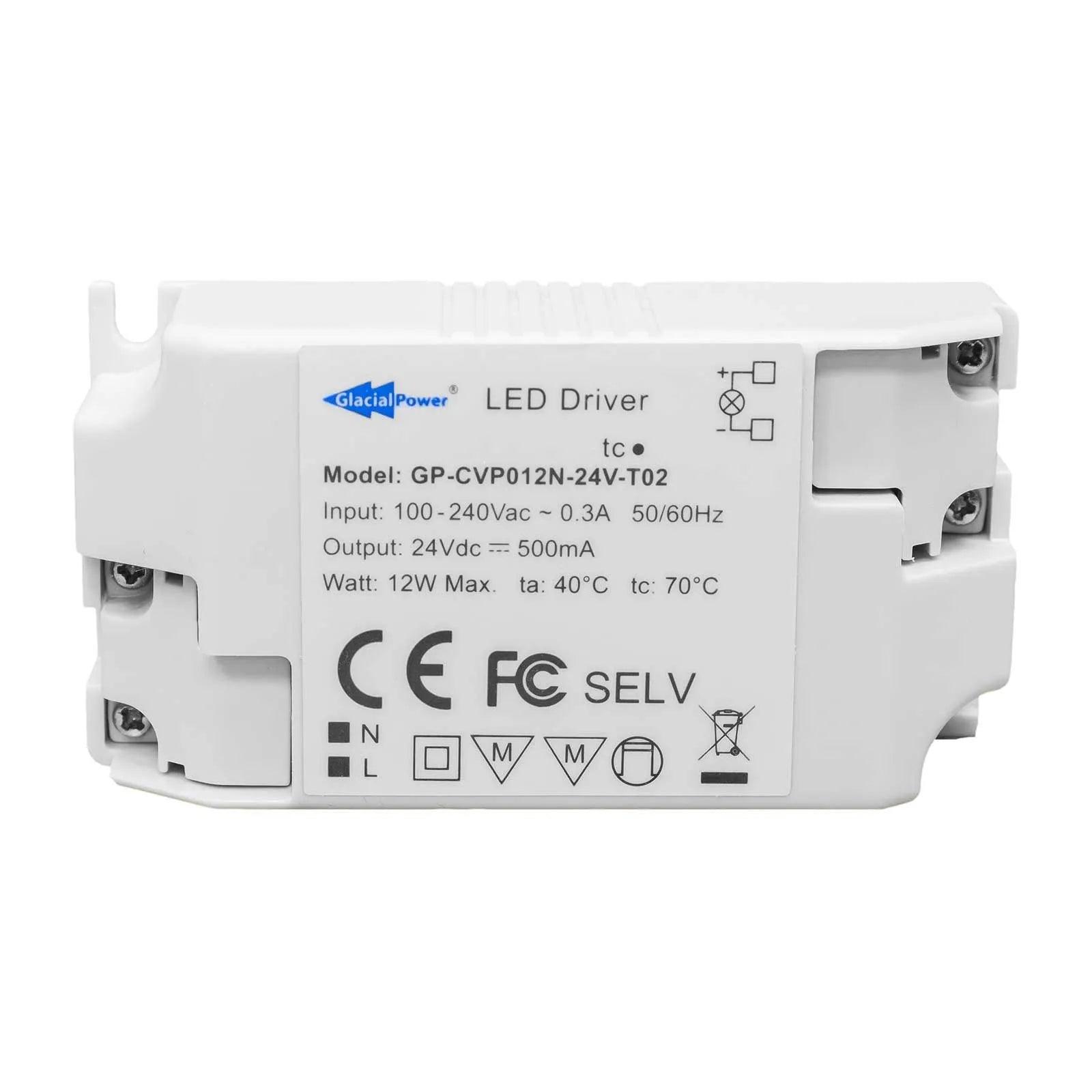

The GP-CVP012N-24V-T02 is built in a fully isolated plastic enclosure with screw terminal connections for both input and output. This makes installation simple without the need for special plugs or connectors.
The driver has a universal AC input range of 90-264VAC, making it suitable for standard 230V mains installations. It is a Class II power supply, meaning it is designed without an earth connection and is housed in an insulated plastic case.
| Model | GP-CVP012N-24V-T02 |
| Product Type | 24V Power Supply / Constant Voltage LED Driver |
| Output Voltage | 24V DC |
| Rated Output Current | 0-500mA |
| Rated Power | 12W |
| Voltage Tolerance | ±5% |
| Ripple and Noise | 240mVp-p max. |
| Efficiency | 83% minimum at 230VAC full load |
| Input Voltage Range | 90-264VAC |
| Rated Input Voltage | 100-240VAC |
| Frequency Range | 47-63Hz |
| AC Current | 0.3A at 115VAC / 0.15A at 230VAC |
| No Load Consumption | <0.5W at 230VAC |
| Protection | Over current protection and short circuit protection |
| Operating Temperature | -10°C to 40°C full load |
| Operating Humidity | 20% to 90% RH non-condensing |
| Storage Temperature | -20°C to +80°C |
| Connection | Input and output 2P screw terminal blocks |
| Input Wire Range | 0.75-1.5mm² |
| Output Wire Range | 0.5-1.5mm² |
| Dimensions | 86 x 45 x 26mm |
| Weight | 74g |
| Safety Standards | EN61347-1, EN61347-2-13 |
| EMC Standards | EN55015, EN61000-4-2/3/4/5/6/11, EN61547 |
