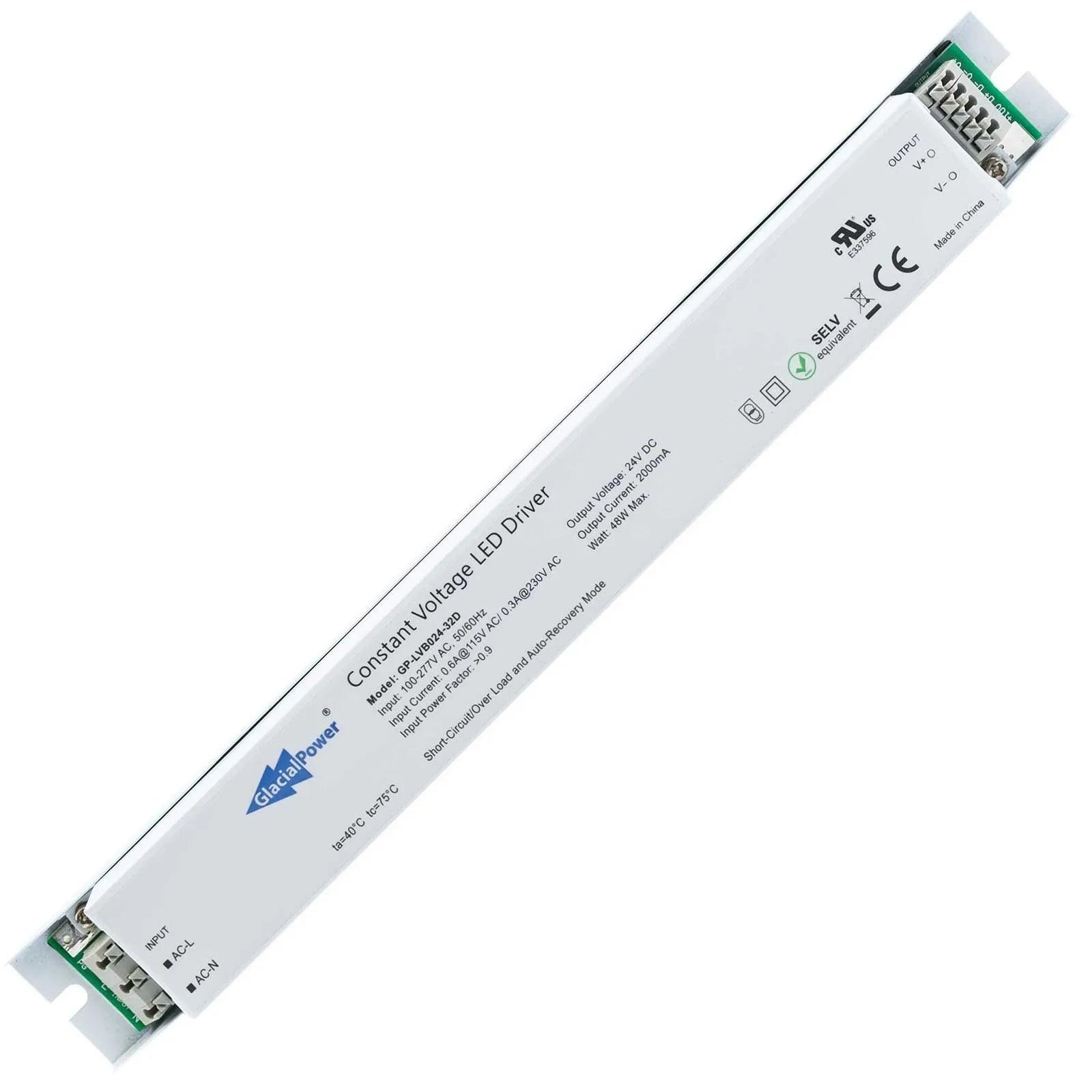

The Glacial electronic transformer is a safe and highly efficient power supply for LED Strip lighting with standby no load consumption less than 0.5W. For short length of strip lights from a few cm to 5 meters this small and compact driver will power up any 24V led circuit.
Size
300 * 33.3 * 28 mm (L*W*H)
ELECTRICAL CHARECTERISTICS
|
Model No. |
GP‐LVB024‐32D |
|
|
Output |
DC voltage |
24V |
|
Rated Current Range |
0‐2A |
|
|
Ripple & Noise (max.) note.2 |
3Vp‐p |
|
|
Voltage Tolerance note.3 |
± 5% |
|
|
Rated Power(max) |
48W |
|
|
Efficiency (Typ.) note.1 |
84% |
|
|
Setup Time (max.) |
2S at 230VAC Full Load |
|
|
Input |
Voltage Range |
100VAC‐240VAC / 277VAC for North American Only |
|
Frequency Range |
50 Hz / 60 Hz |
|
|
AC Current |
0.6A at 115VAC/ 0.3A at 230VAC /0.25A at 277VAC |
|
|
Power Factor |
PF＞0.97/115VAC,PF＞0.92/230VAC,PF＞0.9/277VAC |
|
|
Inrush Current (max) |
<10A/230VAC |
|
|
Leakage Current |
<1mA / 240VAC |
|
|
Protections |
Over Current |
110%‐130% Constant current limiting, auto‐recovery |
|
Short Circuit |
Hiccup mode: Recovers automatically after fault condition has been removed. |
|
|
Environment |
Ambient Temp. |
‐20°C~+50°C full load . |
|
Operating Humidity |
20% ~ 95% RH non‐condensing. |
|
|
Storage Temp. / Humidity |
‐20 ~ +80°C / 10% ~ 95% RH |
|
|
Safety & EMC |
Safety Standards |
Meet EN61347‐1，EN61347‐2‐13；UL8750 refer 1310 |
|
Withstand Voltage |
Meet I/P‐O/P: 3.75KVAC |
|
|
Isolation Resistance |
Meet I/P‐O/P:100M ohms / 500VDC at 25°C |
|
|
EMI Conduction & Radiation |
Meet Compliance to EN55015,FCC part 15 |
|
|
Harmonic Current |
Meet Compliance to EN61000‐3‐2 Class C |
|
|
EMS Immunity |
Meet Compliance to EN61000‐4‐2,3,4,5,6,8,11;EN61547 |
|
|
Connection |
Input |
3P screw terminal black |
|
Output |
2P screw terminal black |
|
|
Others |
MTBF |
>100K Hours at full load and 25°C ambient conditions(MIL‐HDBK‐217F) |
|
Dimension(L x W x H) |
300 x 33.3 x 28 mm; 472.5g/pcs |
|
