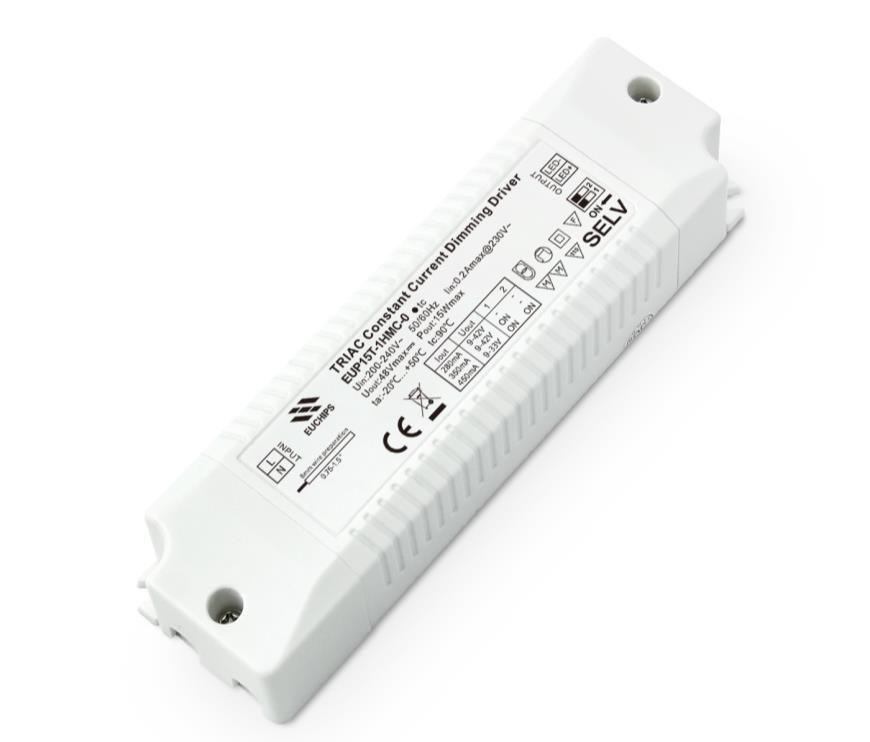

LED Dimmable Driver 15W TRIAC Constant Current EUCHIPS EUP15T-1HMC-0

Compact LED Dimmable Driver for Indoor Lighting Applications

The EUCHIPS EUP15T-1HMC-0 LED dimmable driver is a compact and reliable constant current power supply designed for modern LED lighting systems. It supports both leading edge (TRIAC) and trailing edge (ELV) dimmers, ensuring smooth and flicker-free dimming performance.

In addition, the output current can be easily adjusted using DIP switches, allowing installers to match the driver to a wide range of LED fittings. Therefore, it offers flexibility and ease of installation for both residential and commercial projects.

Smooth TRIAC Dimming with Wide Compatibility

This LED dimmable driver is compatible with a wide range of dimming systems, including brands such as Philips, Panasonic, Lutron, ABB and Siemens. As a result, it delivers stable dimming performance with no visible flicker.

Moreover, it operates across a dimming range from 40VAC to 240VAC, ensuring compatibility with most standard dimmers.

Adjustable Constant Current Output

The built-in DIP switch allows selection of output current levels including 350mA, 400mA, 450mA and 500mA. This makes the LED dimmable driver suitable for a wide range of LED luminaires such as downlights, spotlights and panel lights.

According to the datasheet, the driver maintains current accuracy within ±5% and supports low ripple output below 3%, ensuring stable and consistent lighting performance. :contentReference[oaicite:0]{index=0}

Efficient and Reliable Operation

With efficiency of up to 77% and a power factor greater than 0.95, this LED dimmable driver provides efficient energy usage and stable operation under full load conditions.

Furthermore, it features built-in active PFC, helping to improve overall system efficiency and comply with lighting standards.

Advanced Protection and Safety

This LED dimmable driver includes multiple protection features such as short circuit, overload and over temperature protection. In case of fault conditions, the unit automatically recovers once normal operation is restored.

Additionally, the Class II design and fully enclosed plastic housing ensure safe operation in indoor environments.

Technical Specifications

Model EUP15T-1HMC-0
Power Up to 15W
Output Current 350mA / 400mA / 450mA / 500mA (Selectable)
Output Voltage 9 – 40V DC (Max 48V no load)
Input Voltage 220 – 240V AC
Frequency 50 / 60Hz
Dimming Type TRIAC (Leading & Trailing Edge)
Dimming Range 40 – 240VAC
Power Factor ≥0.95
Efficiency Up to 77%
Ripple Current <3%
IP Rating IP20
Operating Temperature -20°C to +50°C
Lifetime Up to 50,000 hours
Dimensions 150 x 43 x 29 mm
Weight Approx. 125g

Applications

  • LED downlights
  • LED spotlights
  • LED panel lights
  • Track lighting and decorative lighting
  • Residential and commercial LED systems

Installation Note

This LED dimmable driver is designed for indoor use only. It must be installed in a well-ventilated area to ensure proper heat dissipation. If used in outdoor environments, it should be placed inside a suitable waterproof enclosure.
