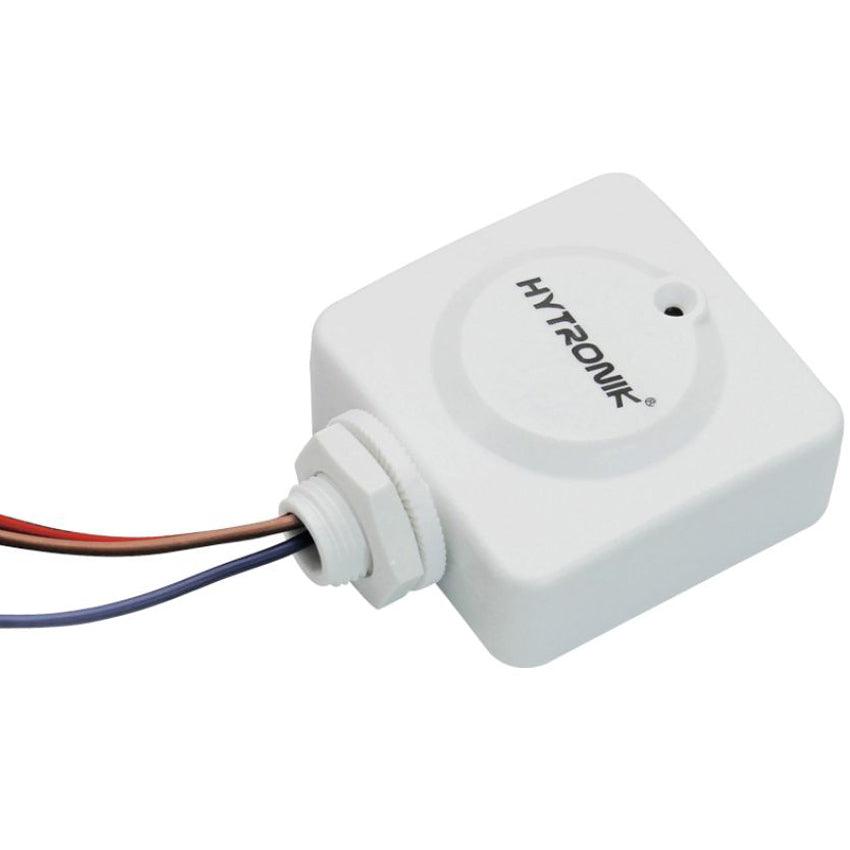

The Hytronik HC030S is a versatile microwave motion sensor designed for external mounting, ideal for lighting control in a variety of applications. Equipped with a motion switch, it automatically activates connected lights upon detecting movement and switches them off after a selected hold time when no presence is detected. This sensor also features an integrated daylight sensor, which prevents activation in sufficient natural light conditions, enhancing energy efficiency.
With certifications from Semko, EMC, CE, R&TTE, and SAA, the HC030S sensor ensures reliable performance and compliance with international standards. This sensor is ideal for both new installations and retrofit projects, with optional external metal conduit and double insulation cables available for extended durability.
| Specification | Details |
|---|---|
| Operating Voltage | 220-240VAC |
| Switched Power | Max. 800W (capacitive) |
| Standby Power | 0.5W |
| Detection Area | 10%, 25%, 50%, 75%, 100% (customisable) |
| Hold Time | 10s, 30s, 90s, 6min, 20min, 30min (customisable) |
| Daylight Threshold | 5 Lux, 10 Lux, 30 Lux, 50 Lux, Disable |
| Sensor Principle | Microwave Motion Detector |
| Microwave Frequency | 5.8GHz ±15MHz |
| Microwave Power | <1mW |
| Detection Range | Max (Ø x H): 18m x 10m |
| Detection Angle | 30°-150° |
| Mounting Height | Max 10m |
| Operating Temperature | -20°C to +60°C |
| IP Rating | IP20, IP65 (with Hytronik special box) |
| Certification | Semko, EMC, CE, R&TTE, SAA |
