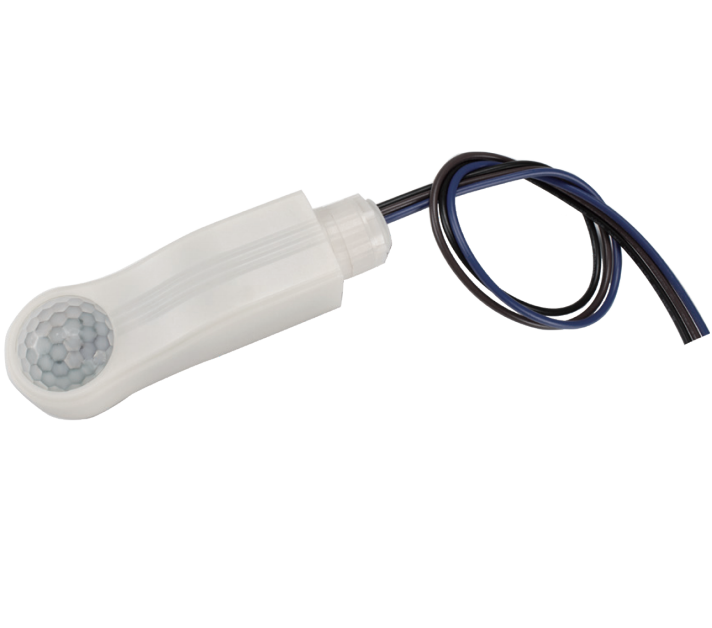

The Hytronik HC049S is a high-performance PIR motion sensor designed for automatic lighting control in commercial, industrial and high bay LED lighting installations. Featuring IP65 protection, 360° motion detection and a maximum installation height of 12 metres, this external motion sensor provides a reliable and energy-efficient solution for warehouses, factories, workshops and commercial premises.
This intelligent LED motion sensor detects movement using passive infrared (PIR) technology and automatically switches connected lighting on when presence is detected. Once movement stops, the lights switch off after a selected hold-time, reducing unnecessary energy consumption and extending the operating life of connected LED luminaires.
The integrated daylight sensor prevents the lights from switching on when sufficient natural daylight is available. Combined with its robust IP65 construction, low standby power consumption and zero-cross relay switching, the Hytronik HC049S motion sensor is an excellent choice for professional lighting automation.
The Hytronik HC049S motion sensor uses passive infrared technology to detect movement within its coverage area. Unlike microwave motion sensors, PIR technology detects changes in infrared radiation associated with moving people and other heat sources.
When movement is detected and the surrounding daylight level is below the selected threshold, the motion sensor automatically switches on the connected lighting.
This automatic lighting control helps reduce electricity consumption in buildings where lighting is not continuously required, particularly warehouses, industrial corridors, storage facilities and commercial premises.
The HC049S is an IP65-rated motion sensor developed for demanding lighting applications. Its dust-tight housing and protection against water jets make it particularly suitable for industrial and commercial environments where conventional indoor sensors may not provide sufficient protection.
The sensor can be installed at heights of up to 12 metres, making it ideal for LED high bay lighting installations in warehouses, factories and industrial buildings.
Its 360° detection angle provides wide coverage, while the adjustable sensitivity allows the detection response to be adapted to the application.
Actual PIR detection coverage depends on mounting height, sensor orientation, movement direction and walking speed.
The Hytronik HC049S offers configurable motion detection parameters to suit different installation requirements.
| Manufacturer | Hytronik |
| Model | HC049S |
| Product Type | PIR Motion Sensor |
| Detection Technology | Passive Infrared (PIR) |
| Lighting Control | Automatic On/Off |
| Operating Voltage | 220-240V AC, 50/60Hz |
| Maximum Resistive Load | 800W |
| Maximum Capacitive Load | 400VA |
| Maximum Inrush Current | 80A at 160µs |
| Standby Power Consumption | Less than 0.5W |
| Maximum Installation Height | 12m |
| Maximum Specified Detection Range | 10m |
| Detection Angle | 360° |
| Detection Sensitivity | 10% / 30% / 50% / 75% / 100% |
| Hold-Time | 30 seconds to 30 minutes |
| Test Mode | 2 seconds |
| Daylight Threshold | 2 / 10 / 50 / 100 / 300 / 500 lux / Disable |
| Ingress Protection | IP65 |
| Insulation Class | Class II |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -30°C to +55°C |
| Relative Humidity | 20-90% |
| Warm-Up Time | 30 seconds |
| Mounting Type | External Bolt-On / Batten-Fit |
| Threaded Mounting | M20 x 1.5 |
| Connection Cable Length | 600mm |
| Certifications | ENEC, CE, EMC, LVD, RCM |
| Manufacturer Warranty | 5 Years |
The Hytronik HC049S PIR motion sensor is suitable for a wide range of commercial and industrial LED lighting applications where automatic motion detection improves energy efficiency and convenience.
The Hytronik HC049S motion sensor is designed for external bolt-on installation onto suitable LED lighting fixtures. Its M20 x 1.5 threaded connection allows integration with compatible high bay luminaires and LED batten fittings.
The sensor features a 600mm three-core connection cable with the following wiring configuration:
The external sensor design allows the PIR lens to be positioned for suitable motion detection coverage. Optional shielding accessories can help restrict the detection area where required.
Electrical installation must be completed by a suitably competent person in accordance with the manufacturer's instructions and applicable UK electrical regulations.
Hytronik specialises in intelligent lighting control solutions designed to improve efficiency and convenience in professional LED lighting installations.
The HC049S combines reliable PIR movement detection, daylight sensing, IP65 protection and high bay installation capability in one compact motion sensor.
Automatic switching reduces unnecessary lighting operation in areas with intermittent occupancy, helping lower electricity costs and reduce operating hours for connected LED lights.
For warehouses, factories and commercial buildings requiring a durable and efficient LED lighting motion sensor, the Hytronik HC049S offers a practical solution supported by a 5-year manufacturer warranty.
| Specification | Details |
|---|---|
| Manufacturer | Hytronik |
| Model | HC049S |
| Sensor Principle | Passive Infrared (PIR) Motion Detection |
| Control Function | Automatic On/Off Lighting Control |
| Operating Voltage | 220-240V AC, 50/60Hz |
| Switched Power (Resistive) | Max. 800W |
| Switched Power (Capacitive) | Max. 400VA |
| Maximum Inrush Current | 80A at 160µs |
| Standby Power | <0.5W |
| Detection Sensitivity | 10%, 30%, 50%, 75%, 100% (adjustable) |
| Hold Time | 30s, 1min, 5min, 10min, 15min, 20min, 30min (adjustable) |
| Test Mode | 2 seconds |
| Daylight Threshold | 2 Lux, 10 Lux, 50 Lux, 100 Lux, 300 Lux, 500 Lux, Disable |
| Detection Range | Max. 10m (subject to installation conditions) |
| Detection Angle | 360° |
| Mounting Height | Max. 12m |
| Mounting Type | External Bolt-On / Batten-Fit |
| Mounting Thread | M20 x 1.5 |
| Connection Cable Length | 600mm |
| Warm-Up Time | 30 seconds |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -30°C to +55°C |
| Relative Humidity | 20-90% |
| IP Rating | IP65 |
| Insulation Class | Class II |
| EMC Standards | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Safety Standards | EN61347-1, EN61347-2-11 |
| Certification | ENEC, CE, EMC, LVD, RCM |
| Manufacturer Warranty | 5 Years (subject to manufacturer conditions) |
