Hytronik Universal Emergency Pack HEM-02

Vendor: Hytronik
SKU: 101015
Availability: In Stock
£44.10
£44.10
Subtotal: £44.10

Hytronik Universal Emergency Pack HEM-02

Hytronik Universal Emergency Pack HEM-02

£44.10

Hytronik Universal Emergency Pack HEM-02

£44.10

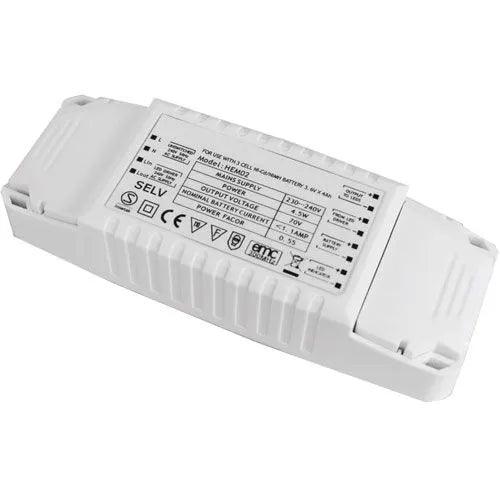

Hytronik HEM02 Emergency LED Driver & Battery

This emergency lighting module is designed to convert a wide range of LED types, an ideal choice for converting most standard LED luminaires and arrays.

This unit is designed to be installed by breaking into the low voltage connection between the mains LED Driver and the LEDs and allows the LEDs to be operated as normal under mains healthy conditions and operated at the reduced light output in an emergency.

The driver automatically adjusts the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The driver is compatible with a wide range of lighting LEDs such as Philips Fortimo DLM,SLM and LLM ranges, Bridgelux LS/ES/RS ranges, Citizen 4-41W ranges, GE Infusion, Xicato and many others


FEATURES

  • Automatic adjustment.
  • Good compatibility with various brands of LED in the market.
  • 2-pole changeover relay
  • Additional 3rd pole relay
  • Deep discharge protection
  • Constant current charger
  • High-temperature NiCd cells(Yuasa)
  • 5 years warranty
  • Compatible with Ledison LED lights including LED Tubes and 2D Lamps 12w, 16w and 9W

OTHER ITEMS INCLUDED IN THE PACKAGE

  • Battery NiCd

  • Cable with green LED Indicator (lead length, 25cm)

  • Test button

VOLTAGE:

220-240VAC

HUMIDITY:

Up to 95%

MAX POWER:

2.7W/3VA

MATERIAL:

Bayblend Fr3010

BATTERY (NI-CD):

3,6V/0,6Ah

DIMENSIONS:

240x90x44mm

AUTONOMY:

3 hours

WARRANTY:

3 years

ILLUMINATION SOURCE:

12 LEDs

WEIGHT:

350gr

LUMEN (230V AC / emergency):

38lm/100lm

CONTROLS:

TEST BUTTON

IP RATING:

IP42

LENS:

Polycarbonate

STANDARDS:

See below

INDICATORS:

Batter Charging

Operating Temp:

OC to 40 OC
