LED Dimmer Switch - AC TRIAC - Touch Glass Panel White

Vendor: Ledison
SKU: 201000
Availability: In Stock
£28.35
£28.35
Subtotal: £28.35

LED Dimmer Switch - AC TRIAC - Touch Glass Panel White

LED Dimmer Switch - AC TRIAC - Touch Glass Panel White

£28.35

LED Dimmer Switch - AC TRIAC - Touch Glass Panel White

£28.35

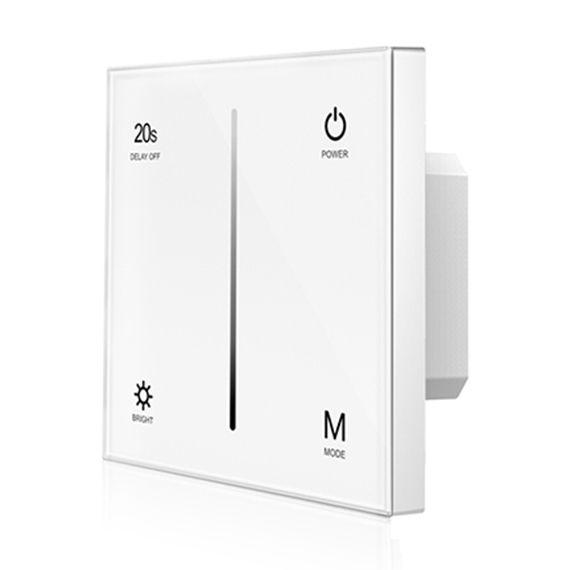

A unique and sophisticated design that makes the installation and operation of this dimmer switch a very enjoyable task. First of all, simplicity starts from the installation procedure, a simple AC input voltage (live and neutral wires) and two wires coming out to the LED load.

The users can adjust the brightness with great accuracy using the virtual sliding bar on the touch panel. By pressing the "bright" symbol the light increases and decreases in equal steps of 10% (every press increases the brightness by 10% when the light reaches the peak light output it will dim down in step of 10% too).

With RF remote control, dimming your lights will be an effortless task, you can switch on/off or adjust the brightness to achieve the right atmosphere in your room/office from up to 30 meters distance and 256 dimming levels

Output Power: 120W-288Watt

SOFT TOUCH DIMMING

  • Touch glass panel AC phase-cut dimmer, 1 channel output.
  • To dim and switch single-colour dimmable LED lamps, traditional incandescent and halogen lights.
  • Ultra sensitive strong glass touch panel with a touch slide in the middle and backlighting.
  • Leading edge dimming or trailing edge dimming set by dip switch.
  • Compatibility with Skydance’s 2.4G dimming remote control.

ELECTRICAL SPECIFICATIONS

  • Input voltage:100~240VAC
  • Input signal: RF 2.4G, Touch panel
  • Triac-dimming voltage: 40-220VAC
  • Max load current:1.2A* 1 channel
  • Max load power: 144W/288W(110V/220V)
  • Load type: Incandescent lamps, HV-halogen lamps, DimmableLED lamps
  • Set leading edge and trailing edge by DIP switch
  • Warranty 5 years.

Dimensions: 86x86x36.5mm
