Upgrade older fluorescent fittings with this smart LED gear tray from Voltacon. Designed as a direct retrofit for 28W and 36W 2D CFL lamps, this 18W LED gear tray combines energy-efficient lighting with an integrated microwave sensor for automatic operation and improved energy savings.
This retrofit LED gear tray is ideal for round ceiling and wall lights that previously used a fluorescent 2D lamp. It gives electricians, maintenance teams and lighting designers a practical way to modernise existing fittings without replacing the full luminaire.
A key benefit of this LED gear tray is the built-in Merrytek microwave sensor with adjustable settings. The sensor can detect movement within a radius of up to 12 metres, making it suitable for corridors, communal areas, stairwells, entrances and utility spaces where automatic lighting control is important.
The integrated photocell is also built into the sensor box and can be activated or deactivated as required. In addition, the user can fine-tune the detection range, switch-on time and switch-off delay to suit the installation environment.
This LED gear tray includes a useful corridor function with 3-level dimming. After the selected hold time has elapsed, the LED board dims down to 10%, helping reduce power consumption while still maintaining a low background light level. If corridor mode is not needed, the sensor can also operate in simple on and off mode without dimming.
Because of this flexible control, the fitting is especially useful in shared residential buildings, commercial corridors and internal access routes where lighting is needed only when movement is detected.

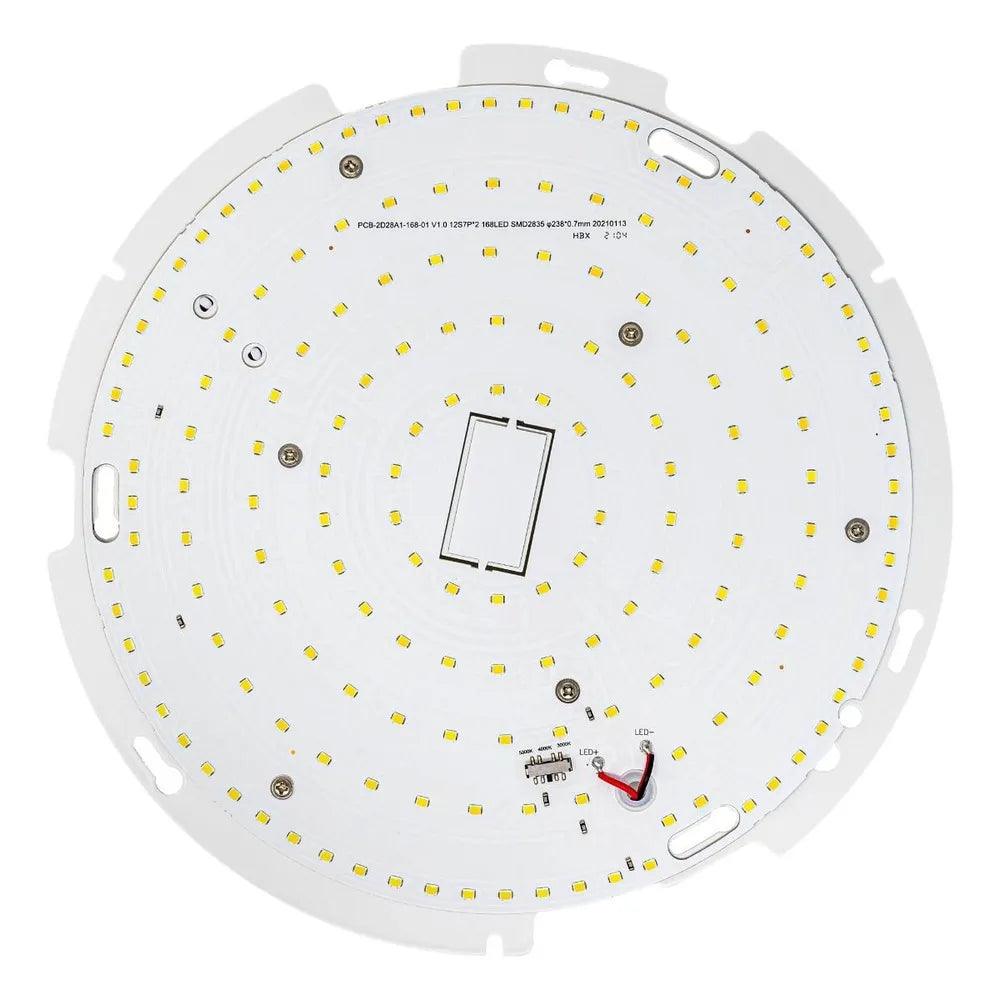

The LED module is mounted on a durable metallic tray and includes a compact built-in driver. There is also a fully insulated junction box for safe mains connection, plus a three-way power block for switched live, neutral and earth. As a result, installation is clean, practical and suitable for professional retrofit work.
With 1800 lumens output, a wide 120 degree beam angle and a 50,000 hour lifetime, this LED gear tray is a dependable long-term replacement for older 2D fluorescent lamp systems.
| Fitting | 2D / 4 pin | Luminous flux | 1800lm |
| Wattage (rated) | 18W | Colour rendering index | >80 |
| Voltage | 100-265V | Typical efficiency | 100lm/W |
| Line frequency | 50/60Hz | Beam angle | 120° |
| Average lifetime | 50,000 hours | Current | 250mA |
| Colour temperature | 3000K / 4000K / 5000K | Dimensions | 262mm diameter |
| Warm white | 3000K | Power factor | 0.95 |
| Natural white | 4000K | Dimmable | No |
| Cool white | 5000K | Warranty | 5 years |
| Operating temperature | -20°C to 45°C | Certification | TUV, RoHS Compliant, CE, UL |
