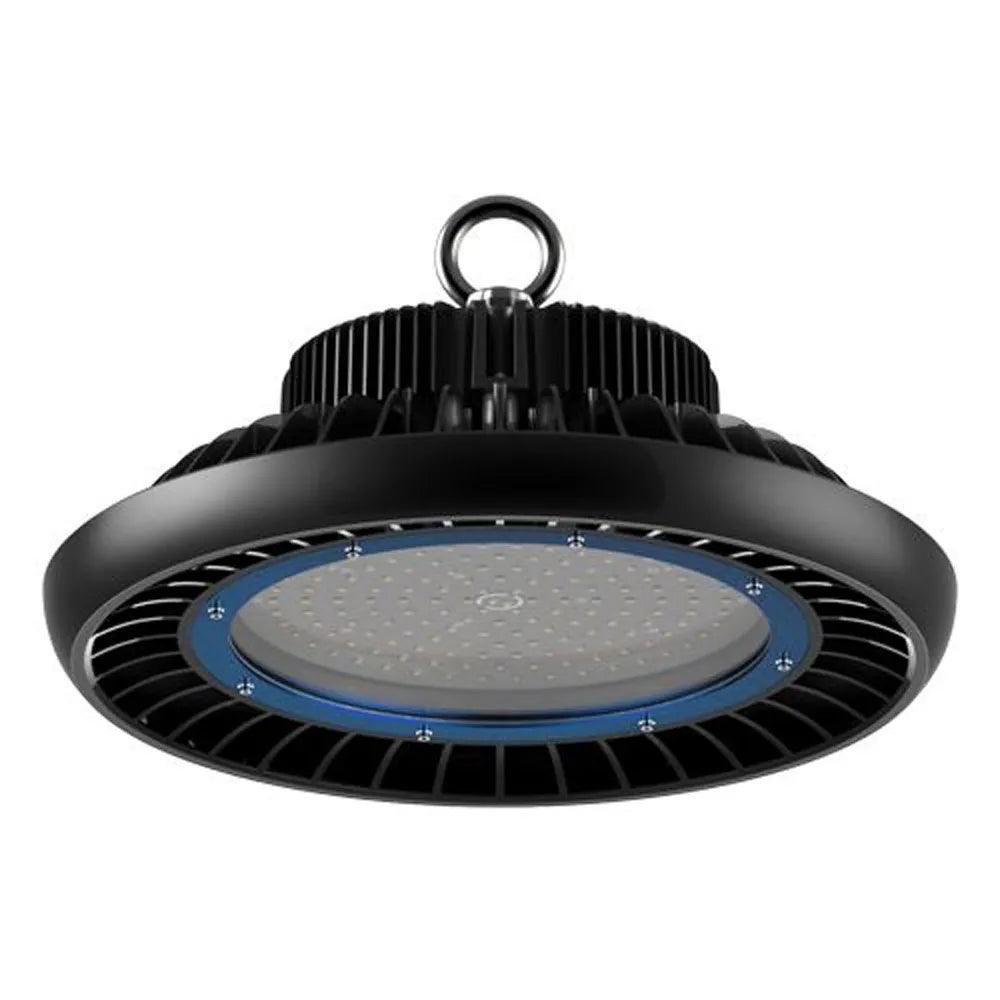

A futuristic LED Bay Light with Philips SMD 3030 chips.Ideal replacement for 400W metal halide and sodium lighting.
The ideal replacement for metal halide and high-pressure sodium lamps. The showerhead style LED bay light has an impressive lumen output of 15500 lumens. This is a replacement for SON lamps and bay lights up to 400W.
The main housing is an aluminium die-cast that accommodates the power supply on top. The cooling is achieved by natural convection. We created a special geometry to transfer the heat from the solid metal casing to air with multiple fins on the heatsink.
The main housing is an aluminium die case that accommodates the power supply on top. The cooling is achieved by natural convection. We created a special geometry to transfer the heat from the solid metal casing to air with multiple fins on the heatsink.
There is also space between the LED Driver and the light engine (a copper-based board with SMD3030 chips), to allow circulation of air and avoid hot spots inside the bay light
Main Features
- Modern shape made of aluminium. Electrostatic paint
- Impressive design suitable for commercial and industrial areas
- IP65 rating with a solid aluminium heatsink and integrated power supply
- Supplied with pre-installed cables and eye hooks
- Quality that lasts over 50,000 hours of bright light.
- 120 Lumens per Watt
LED HIGH/LOW BAY LIGHT 80WATT
The ideal replacement for metal halide and high-pressure sodium lamps. The shower-style LED bay light has an impressive lumen output of 9600 lumens. This is a replacement for SON lamps and bay lights up to 250W.
The main housing is an aluminium die-cast that accommodates the power supply on top. The cooling is achieved by natural convection. We created a special geometry to transfer the heat from the solid metal casing to air with multiple fins on the heatsink.
There is also space between the LED Driver and the light-engine (a copper-based board with SMD3030 chips), to allow circulation of air and avoid hot spots inside the bay light
Main Features
- Modern shape made of aluminium. Electrostatic paint
- Impressive design suitable for commercial and industrial areas
- IP65 rating with a solid aluminium heatsink and integrated power supply
- Supplied with pre-installed cables and eye hooks
- Quality that lasts over 50,000 hours of bright light.
- 120 Lumens per Watt
WATCH THE PRODUCT VIDEO ON OUR YOUTUBE CHANNEL
This UFO (or Showerhead) LED Bay covers any commercial application from 3-meter ceilings up to 15 meters. The narrow beam angle of 60° (110 deg default) increases the lux levels up to 20%. Our industrial lighting solutions are the most economical in the market with the shortest payback period.
FEATURES FOR A TRULY VERSATILE LED BAY LIGHT
- Dimmable with the DALI system
- Emergency battery pack with Ni-Cd batteries
- A Hytronik microwave sensor can be mounted on the bay light for an extra £35.00. The maximum detection range is 15 meters.
MICROWAVE SENSOR FOR HIGH BAY LIGHTS
Using the MC054 RC + MH01 microwave motion sensor, the High Bay Light will be turned on when movement is detected. If the detection range and hold-on time needs to be adjusted, this can be easily programmed using the remote control, no need to use lifting equipment to reach the light fitting again.
The sensor has automated dimming function when it is combined with 1-10V LED driver.
|
Fitting: |
High Low Bay |
Luminous flux: |
15500 lumen |
|
Wattage (rated): |
150 Watt |
Color Rendering index: |
>80 |
|
Voltage: |
100-265Volt |
Typical efficiency: |
111lm/W |
|
Line frequency: |
50/60Hz |
Beam Angle: |
110deg. |
|
Average lifetime: |
50,000 hours |
Net Weight per piece |
7kg |
|
Color Temperature: |
|
Diameter |
Φ365 x 365 x156 mm |
|
Warm white: |
3000K |
LED Chips Philips |
SMD 3030 (196 pieces) |
|
Natural white: |
4000K |
Dimmable |
YES as an option |
|
Cool white: |
5500K |
Warranty: |
5 years |
|
Operating Temp: |
-25 OC to 50 OC |
Certification: |
TUV, ROHS Compliant, CE, UL |
Option for narrower beam angle: At 60°, the bay light is made of: 252PCS SMD3030
|
Standards & Certification |
Operating Temperatures |
||
|
Type of protection |
IP65 |
Operating temperature |
-20~+69℃ |
|
Dielectric strength |
3.75kVac |
Ambient temperature | -40~+50℃ |
|
Safety features |
Open circuit protection Short circuit protection Overvoltage protection |
Storage temperature | -40~+80℃ |
|
Certificates |
American market: UL, DLC Premium, cUL European market: TUV, GS, CB, CE, D-Mark Australian market: SAA, CTick,RCM |
||
|
Energy Class |
A+ & A++ | ||
