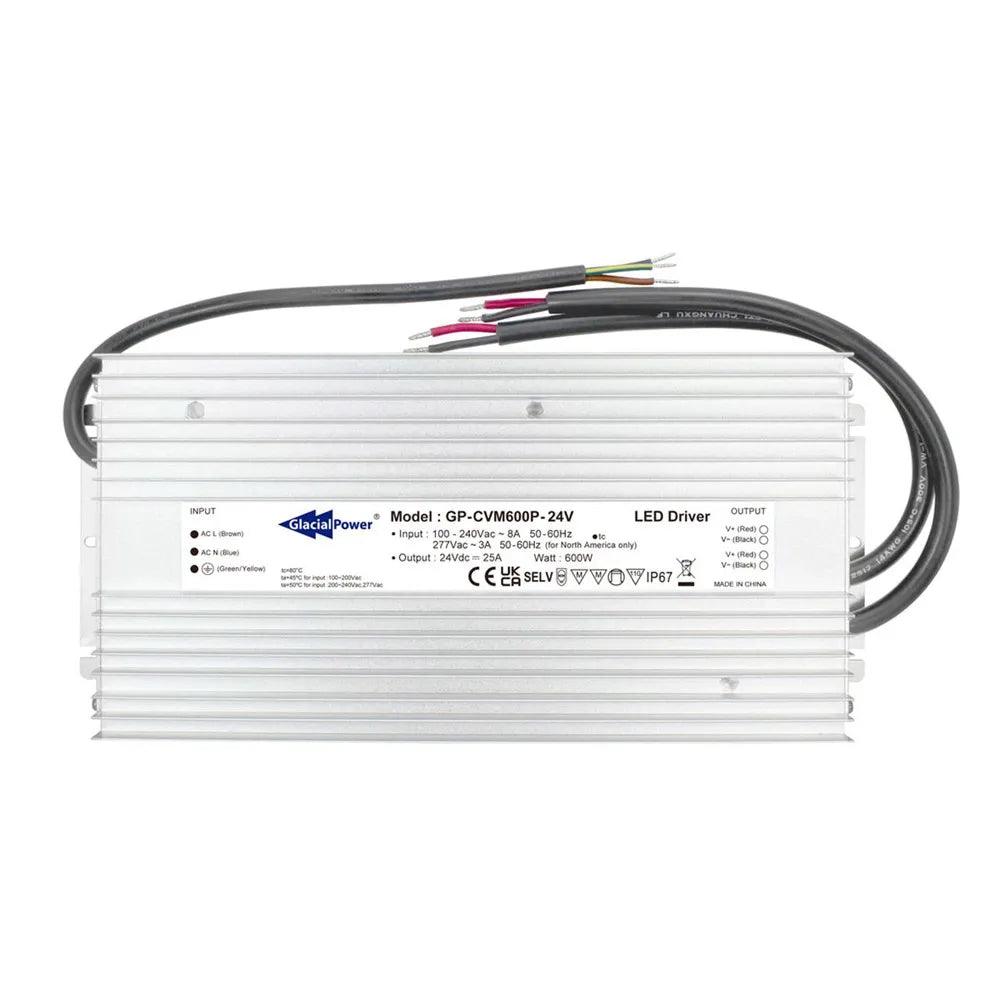

Glacial Power 600Watt Constant Voltage LED Power Supply 24V Dimmable

Vendor: Glacial
SKU: 999017
Availability: In Stock
£156.45
£156.45
Subtotal: £156.45

Glacial Power 600Watt Constant Voltage LED Power Supply 24V Dimmable

Glacial Power 600Watt Constant Voltage LED Power Supply 24V Dimmable

£156.45

Glacial Power 600Watt Constant Voltage LED Power Supply 24V Dimmable

£156.45

The largest constant voltage LED driver for LED stripes, signage, and long track light systems up to 600Watt. Dimmable with 1-10V switch, compact design 2.4kg, 95% efficiency. Approved for UK and EU market

GP-CVM600P series operate AC input range from 90 to 305VAC, and standard operation temperature ranges start from -40°C to +50°C (Refer to output load derating curve) The market applications focus on LED strips, illuminated signage, light boxes, LED neon flex, aluminium profile and 48V magnetic track lights.

GP-CVM600P is designed with active PFC, at full load the PFC which greater than 0.98(115VAC) and more than 0.95(230VAC). Inrush current (Typ.) at cold start is 55A (Td=2020us measured at 50% Ipeak) at 230VAC. Power output high-efficiency is 24V(95%). Total Harmonic Distortion (THD) less than 10% at 230VAC, full load.

Features

  • Universal AC Input Range 90 ~ 305VAC.
  • Constant Voltage mode.
  • Active PFC design.
  • Protections: OVP / OCP / SCP / OTP.
  • High Efficiency up to 96%
  • Surge protection with 4KV/2KV
  • No-load power consumption < 0.5W at 230VAC (for non-dimming models).
  • Standby Power consumption < 0.5W at 230VAC (for dimming models).
  • Suitable for LED strips and Moving Sign applications.
  • 3-in-1 dimming (dim-to-off) and DALI-2 functions available.
  • Fully Insulated Case with IP67 rated.
  • Cooling by Free Air Convection (Metal Housing)
  • The output and dimming lines are compliant with the new regulations with isolation.

GP-CVM600P has innovative designs that make it stand out in the market, especially the following two features.

Energy-Efficient ERP Compliant Design:
The GP-CVM600P LED driver series meets stringent ERP regulations, achieving a no-load and standby power consumption of less than 0.5W at 230VAC—a challenging benchmark for high-power LED drivers (e.g., 600W). Thanks to its innovative auto-detect circuit, the GP-CVM600P series can remain connected to the mains without manual shutdown, ensuring compliance with ERP requirements seamlessly.

Lightweight and Space-Saving Build:
Weighing approximately 2.5kg, the GP-CVM600P is notably lighter than typical 600W LED drivers on the market, which range from 3.3 to 4.0kg. The slim aluminium casing not only reduces weight but also optimises space, facilitating efficient heat transfer. Integrated aluminium fins enhance cooling by increasing surface area for heat dissipation. Thermal simulations have fine-tuned the spacing and height of these fins to effectively cool key heat-generating components, extending component lifespan, reducing internal temperatures, and cutting transport costs.


Technical Specs

Model No.

GP-CVM600P-12V(X)

GP-CVM600P-24V(X)

GP-CVM600P-36V(X)

GP-CVM600P-48V(X)

GP-CVM600P-54V(X)

Output

DC Voltage

12V

24V

36V

48V

54V

Rated Current

0~40A

0~25A

0~16.66A

0~12.5A

0~11.1A

Rated Power

480W

600W

599.76W

600W

599.4W

Ripple &Noise (Max.)

150mV

150mV

250mV

250mV

350mV

Efficiency at 230VAC (Typ.)

92.5%

95%

95.5%

96%

96%

Voltage Tolerance

± 5%

± 5%

± 5%

± 5%

± 5%

PWM Dimming (optional)

> 1600 Hz (for dimmable version)

Set up time (Max.)

0.5s / 230VAC, 1s / 115VAC, at full load.

0.7s / 230VAC for DALI-2 version

Input

Rated Voltage

100 ~ 277VAC 141~392VDC

Voltage Range

90 ~ 305VAC

Frequency Range

47 Hz ~ 63 Hz

AC Current (Typ.)

6.4A at 115VAC / 3.2A at 230VAC , 5.2A at 115VAC / 2.6A at 230VAC only for 12V(X)

Power Factor

>0.98 at 115VAC / >0.95 at 230VAC at full load. PF≧0.9 at 70% load

Total Harmonic Distortion

THD < 10% at 230VAC, full load.

Inrush Current (Typ.)

Cold Start 55A (Td=2020us measured at 50% Ipeak) at 230VAC

Max. Number of PSUs
on Circuit Breaker

B type : 1 unit (16A) / 2 unit (25A),
C type : 1 unit (10A) / 2 units (16A) / 3 units (25A),
D type : 4 units (16A) / 6 units (25A) at 230VAC

Leakage Current

<1mA / 240VAC

Protections

Over Current

105~180% rated current.

Type: Hiccup mode (Auto recover after fault condition disappeared).

Short Circuit

Type: Hiccup mode (Auto recover after fault condition disappeared).

Over Voltage

13~19V

26~38V

38V~50V

50V~65V

56~70V

Type: Latch at full load

Over Temperature

Tcase: 95°C ± 10°C

Type: Shut down output, recovers automatically after temperature goes down.

Others

MTBF

120K hours min. MIL-HDBK-217F(25°C)

Dimension(L x W x H)

300 x 138 x 47mm; 2450g/pcs
