The VOLTACON LED tubes are dimmed very smoothly from 10% up to 100% without any flicker. The brightness can be adjusted with standard dimmer switches such as the well know VARILIGHT. Ledison T8 LED Dimmable Tube 180cm (1778mm) 32W.
All the dimmable tubes are controlled by an external LED driver (included in the box).
The T5 and T8 tubes can be controlled smoothly without flickering from 0% to 100%. The following widely used dimming methods are offered by Voltacon:
- AC Triac Dimming (Mains Dimming with Trailing Edge dimmer switches)
This is the simplest and the most common method, it requires an external driver and no extra wiring. The mains dimmer (live and neutral wires) switch controls the input voltage to the LED driver
Compatible Dimmer switches: Varilight, Lutron, Osram.
Meanwell & GLACIAL 3 in-1 dimming: 1-10V, Resistive potentimeter
The external dimming signal is required with 1x pair of cables. The dimmable driver will power up and control 1 or 2 tubes according to the power rating. The control signal (1-10V) is a pair of cables with positive (blue) and negative (white) polarity.
Compatible Dimmer switches: Varilight, Lutron, Osram, other 1-10V dimmer switches or resistive potentiometers
DALI Control (Digital Addressable Lighting Interface)
An external LED driver with multi stage constant current output is required. The output current level can be adjusted by controlling the DIP switches. The MEANWELL range of DALI drivers are available in 25w 40w and 60w. These are digitally controlled models with DALI interface and push-dimming function. DALI technology offers high-precision dimming and diagnosis of the state of the LED lamps.

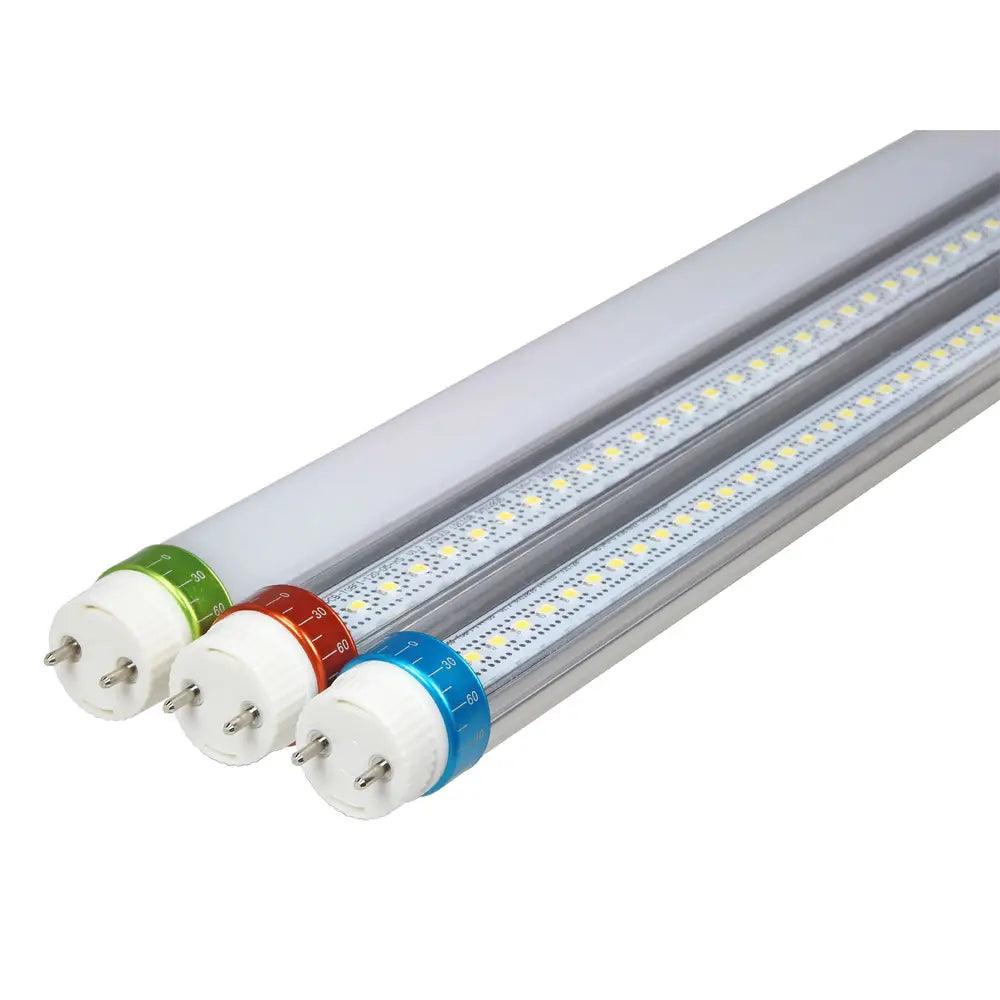

T8 LED TUBES DIMMABLE WITH STANDARD MAINS DIMMERS - 60CM 10WATT
Our dimmable tubes are very easy to use and come with an external dimmable driver which is quite small and compact only 85 x 54 x 32.5mm.
The VOLTACON LED tubes are dimmed very smoothly from 10% up to 100% without any flicker. The brightness can be adjusted with standard dimmer switches such as the well-known VARILIGHT. The T8 and T5 LED VOLTACON LED tubes are compatible with all three of the main LED dimmer series:
- V-Pro (LED Dimmer up to 100W or 10 lamps)
- V-Com (LED Dimmer for larger loads)
- Eclique2 (Remote Control Dimmer)
All the dimmer switches are available from our online website. The VOLTACON LED tubes are compatible with a wide range of LED dimmers in the market but we listed only one reputable maker of dimmers on our website.
PRODUCT DESCRIPTION
- Dimming control continuously from 100% to 10% lighting level
- Built-in 3 in 1 dimming function (1-10Vdc or PWM Signal or resistance)
- Built-in active power factor correction (PFC)
- Supports a wide range of current and voltage levels (up to 48 Watts)
- Integrated functionality enables dimming/switching via standard switches
- Reversible protection mechanisms for short-circuit/over temperature/over voltage
- Form factor to fit any LED tube fixture/batten
- Compliance with worldwide safety regulations for lighting.
IMPORTANT NOTICE: When you buy a dimmable T8 or T5 LED tube, you have to notify us by email the type of dimmer you are planning to use such as AC Triac (leading /trailing edge) or 1-10V dimming signal.
AC triac dimmable tubes (leading or trailing edge) work with the switches from Varilight V-Pro.
PRODUCT FEATURES
- LED Tubes with dimming functions can save up 90% over the non-dimmable tubes
- Lumen maintenance factor LM80,80% lumen maintained after 50,000 hours
- Quick and easy installation to minimize retrofit costs
- No RF interference, no buzzing noise, no flickering
- Up to 50,000 hours of lifetime
|
Fitting: |
T8 |
Luminous flux: |
2530lm |
|
Wattage (rated): |
22 Watt |
Color Rendering index: |
>80 |
|
Voltage: |
100-265Volt |
Typical efficiency: |
115lm/W |
|
Line frequency: |
50/60Hz |
Beam Angle: |
120deg. |
|
Average lifetime: |
50,000 hours |
Net Weight per piece |
150gr |
|
Color Temperature: |
Diameter |
26mm |
|
|
Warm white: |
2700-3200K |
Length (pin to pin) |
1514mm |
|
Natural white: |
4000-5000K |
Dimmable |
YES |
|
Cool white: |
5500-7000K |
Warranty: |
5 years |
|
Operating Temp: |
-40 OC to 50 OC |
Certification: |
TUV, ROHS, CE, UL |
