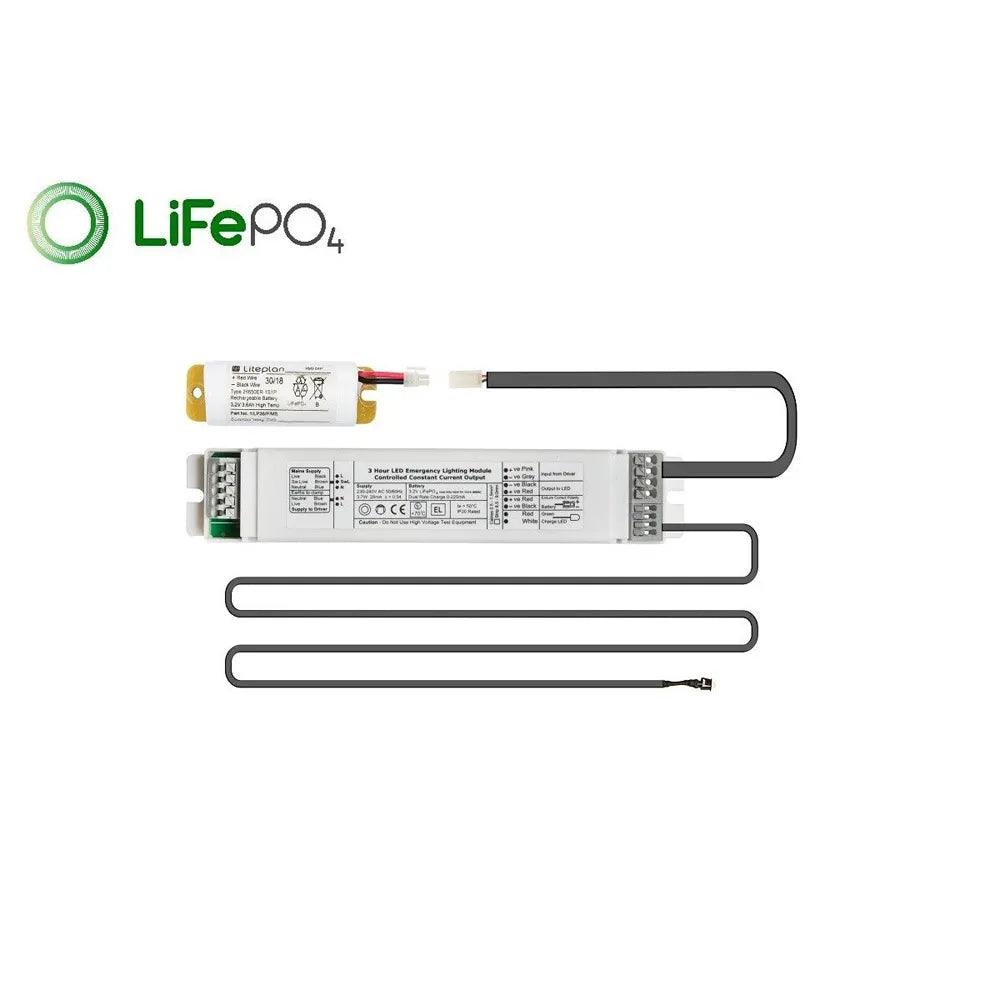

Liteplan Emergency Conversion Pack with T8 LED Tube 150cm 30W

Vendor: Liteplan
SKU: EM+110820
Availability: In Stock
£54.00
£0.00
£54.00
Subtotal: £54.00

Liteplan Emergency Conversion Pack with T8 LED Tube 150cm 30W

Liteplan Emergency Conversion Pack with T8 LED Tube 150cm 30W

£0.00 £54.00

Liteplan Emergency Conversion Pack with T8 LED Tube 150cm 30W

£0.00 £54.00
Choose Colour Temperature: Warm White

The Emergency Kit "Emer Kit" is developed to be used with any of the Ledison Tubes and PL lights. The kit is designed to fit into most standard existing fittings. It will provide autonomy to LED tubes and PL bulbs for up to 4 hours at reduced power (30%), ensuring the minimum legal requirements for emergency lighting are met.

The tube in the present kit is 150cm, 30 watts with a luminosity of 3200 Lumens.

FEATURES:

  • BSI Kitemark Approval
  • ENEC Approval
  • Convert any LED arrays from 6-80V
  • Automatic adjustment of current to provide optimum BLF (Ballast Lumen Factor)

The Emergency Kit can be operated in maintained or non-maintained mode A Green-Red LED indicates the status of the Emergency Kit.

The built-in Lithium battery reduces the size of the emergency kit and eliminates extra wires. It is safer, easier and takes much less space to use Ledison's Emergency Kit.



POWER Model

Tube T8/T5 60cm or PL

Tube T8/T5 120cm

Tube T8/T5 150cm

Output power

10W

18W

22W

Illumination Intensity (LM)

1000

1800

2200

Emergency Intensity(LM)

500

600

700

Emergency Time(hrs)

4h

3.5h

3h

LED Voltage Range 6-60V 6-80V
No. of LEDs 2-20 (in series) 2-30 (in series)
LED Current Limit 320mA
LED Voltage Limit 60V 80V
Bat. Current Limit 1100mA
Mains Supply 230-240V AC 50/60Hz
Power Rating 5W
Power Factor 0.9
Charge Current 200mA Nominal
Recharge Period 24 hours
Battery Pack 3 x 4.5Ah D Cell Ni-Cd
Battery Cut Off 3.0V
Ta 5°C-40°C
Module Size 165mm x 45mm x 29mm FC=155mm
