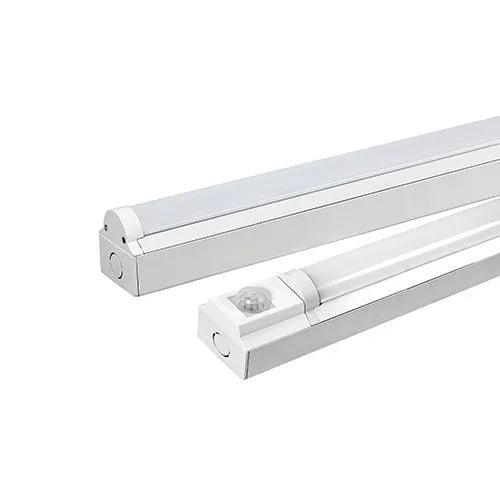

LED Light Fitting 60cm 10Watt Linkable. Surface Mounted & Suspended.1250lumen. Replacement for 2ft fluorescent T8 battens. Tri colour 3000K/4000K/5500K
The new ultra-slim LED batten is a truly widely used fitting that can light the aisles of supermarkets, busy office areas, long corridors or warehouses. The 150cm metallic housing is only 500g and can be linked to other slimline fittings to create long lighting systems.
There is also an advanced version with a dimmable function, you can select between 1-10V or AC-Triac dimming. Our LED experts will answer any technical questions, we also offer lighting simulations using DIALUX.
This LED light is made as a replacement for the 6ft battens with fluorescent T8 Tubes.
SPECIAL FEATURES & BENEFITS
- The LED board is mounted on a heat sink plate for quick and efficient heat dissipation
- The casing has a 20mm knockout at the end cap for thorough wiring
- Tri-colour light output in 3000K/4000K/5500K, adjustable with on-board dip-switches
LED FITTING - ELECTRICAL SPECIFICATIONS AND PERFORMANCE
• Input Voltage: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<10%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @50000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C
MECHANICAL DRAWING
600 x 50 x 55mm. Net Weight 500gr
- Rear and end cable entry options.
- Simple clip design and interlocking power cord for easy installation.
- The flat end allows for end-to-end light designs.
|
Fitting: |
LED BATTEN |
Luminous flux: |
1250lm |
|
Wattage (rated): |
10 Watt |
Color Rendering index: |
>80 |
|
Voltage: |
100-265Volt |
Typical efficiency: |
125lm/W |
|
Line frequency: |
50/60Hz |
Beam Angle: |
120deg. |
|
Average lifetime: |
50,000 hours |
Net Weight per piece |
500gr |
|
Color Temperature: |
|
Width x Height |
50x55mm |
|
Warm white: |
3000K |
Length (pin to pin) |
60cm |
|
Natural white: |
4000K |
Dimmable |
YES |
|
Cool white: |
5500K |
Warranty: |
5 years |
|
Operating Temp: |
-40 OC to 50 OC |
Certification: |
TUV, ROHS, CE, UL |
