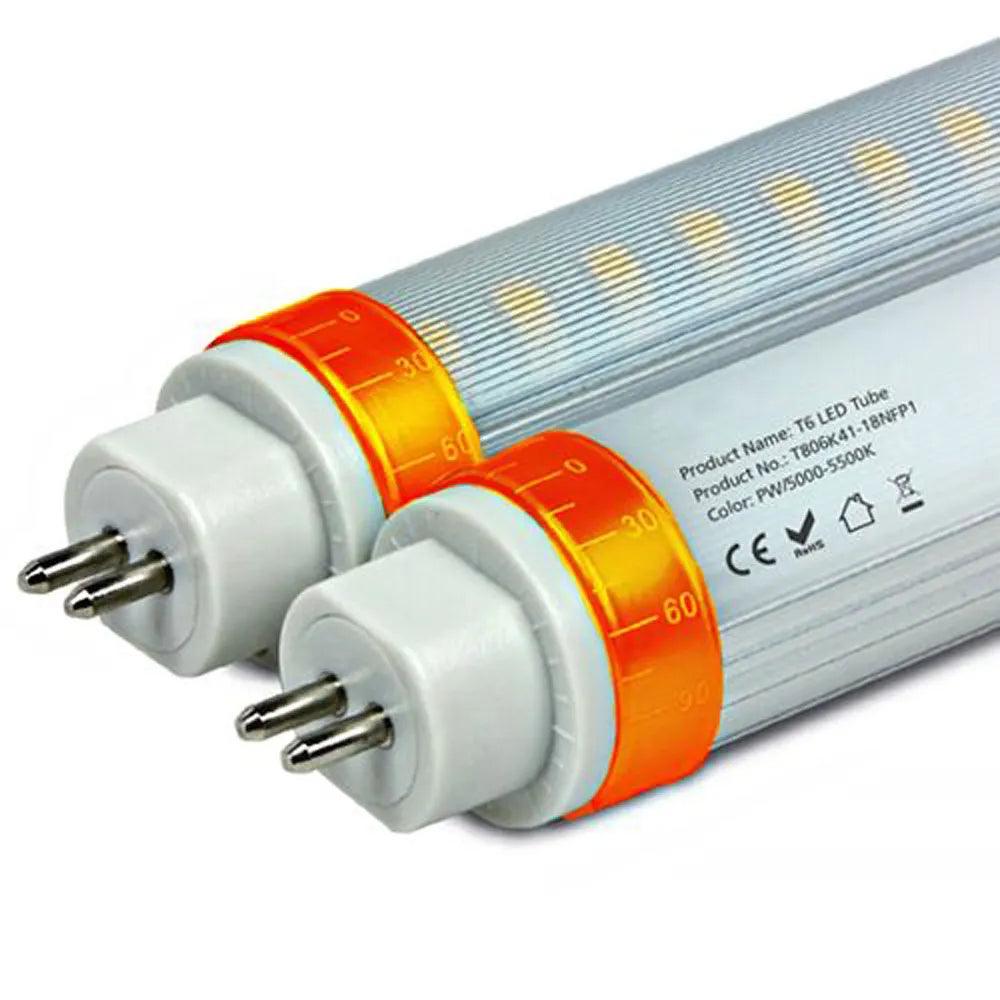

T5/T6 LED tube, 90cm, 12W, mains connected, built-in power supply, aluminium housing with rotating end caps. Lasts for 50,000 hours, up to 20% brighter than fluorescent strip lights
T5 LED TUBES WITH BUILT IN DRIVERS - DIRECT MAINS POWERED
Ledison T5 LED Tubes are the perfect retrofit for the existing fluorescent T5 tubes. Ledison T5 LED Tubes are energy efficient, environmentally friendly alternatives to standard fluorescent tubes which run cool and emit no UV light. Ledison T5 LED Tube light can deliver even more light output compared to the fluorescent counterpart.
LEDISON T5 is the first tube with build-in power supply. The isolated power supply is embedded safely inside the LED tube. The T5 LED tube works directly from AC voltage source at 90-305VAC.
The LED T5 tubes are assembled with SMD 2835 LED chips which are optimised for distributed lighting. The T5 fittings are rotating (180deg) and lockable.
In some cases a quick rewiring might be required if your fitting is double-ended - our tubes require a single-ended power connection.
PRODUCT FEATURES
- 125 lumen per watt
- Highest colour rendering index in the world CRI>90
- Universal AC Input 90-277VAC
- Pass the 4000V high voltage insulation test
- Over 50,000 life span
- 120° and 140° beam angle
COOL PERFORMANCE
Thermal vias (holes on board) carry heat away from LEDs, providing an enhanced thermal path for heat flow.
SAFETY COMES FIRST
The T5 LED tubes with built-in drivers are fully certified products in accordance to TÜV Rheinland, CE, and ROHS and UL. They Fulfil the requirements for safety and performance to meet USA, EU and British standards for safety against electric shock and electromagnetic Compatibility (EMC).
LED T5 TUBE - STRUCTURE
|
Fitting: |
T5 |
Lumen: |
1440lm |
|
Wattage (rated): |
12 Watt |
Color Rendering index: |
>76 |
|
Voltage: |
100-305VAC |
Typical efficiency: |
120lm/W |
|
Line frequency: |
50/60Hz |
Beam Angle: |
120deg. |
|
Average lifetime: |
50,000 hours |
Net Weight per piece |
|
|
Color Temperature: |
Diameter |
22mm |
|
|
Warm white: |
2700-3200K |
Length (pin to pin) |
863mm |
|
Natural white: |
4000-5000K |
Dimmable |
NO |
|
Cool white: |
5500-6500K |
Warranty: |
5 years |
|
Operating Temp: |
-20 OC to 50 OC |
Certification: |
ROHS Compliant, CE, UL |
